Add custom panel (UIToolkit format)

A demo panel code:

public class DemoPanelModule : IConsolePanelModule
{
 public string Name => "DemoPanel"; // Name to display on the side panel

 public float SideBarOrder => 12; // The order of the button to appear on the side panel

 public VisualElement CreateElement(ConsoleContext context)
 {
     // Create the VisualElement for the panel - this is for that specific ConsoleContext.
     // Remember you can have multiple editor console windows and at runtime too.
     // The context will be unique per window.
     return new BasicDemoPanel();
 }
}

class BasicDemoPanel : VisualElement
{
    public BasicDemoPanel()
    {
        AddToClassList("panel"); // just adds a background
        Add(new Label("Hello from demo panel"));
    }
}

SideBarOrder is a plain sort order — a float, so you can slot in between the built-in panels:

Panel Order
Logs 1
Options 2
Hierarchy 3
Utilities 4
Editor Options 5

So 2.5 puts your panel between Options and Hierarchy.

Optional members

// Hide the panel without removing the module (e.g. gated on a build flag or a server switch)
public bool PanelFeatureEnabled => MyGame.IsInternalBuild;

// Replace the sidebar button entirely
public VisualElement CreateSideButton(ConsoleContext context, Action clickedCallback) { ... }

Your panel element can implement IConsolePanelModule.IElement to hear the sidebar button being clicked while your panel is already open — usually a cue to reset:

class BasicDemoPanel : VisualElement, IConsolePanelModule.IElement
{
    public void OnReselected() => ResetToTop();
}

2 ways to register to console.

a. Manually add the panel at runtime by code:

if(NjConsole.Modules.GetModule(typeof(DemoPanelModule)) == null){
    NjConsole.Modules.AddModule(new DemoPanelModule());
}

b. Add via IConsoleExtension:

  1. Add IConsoleExtension interface to your panel module class.
  2. Add [Serializable] attribute to the class.
  3. Go to Project Settings > Ninjadini ⌨ Console > Extension Modules > Add Extension Module > add your new class
  4. Press Apply changes

Add custom panel (OnGUI / IMGUI format)

Alternatively, you can also add your panel using OnGUI rendering.

public class DemoOnGUIPanelModule : IConsoleIMGUIPanelModule
{
   public string Name => "OnGUI";

   public float SideBarOrder => 12;

   public IConsoleIMGUI CreateIMGUIPanel(ConsoleContext context)
   {
      // Each ConsoleContext is a different ui window, so we need different instance per window.
      return new BasicOnGUIDemoPanel();
   }
}

class BasicOnGUIDemoPanel : IConsoleIMGUI
{
   public void OnGUI()
   {
      GUILayout.Label("Hello from OnGUI");
   }
}

Panels for Edit mode (both in and out of play mode)

Panels can show outside play mode too — handy for pulling your existing editor tools somewhere easier to find, or for making them work in play mode as well.

IConsoleModule > PersistInEditMode decides whether the module is cleaned up after play mode. Beyond that you just add the module when you want it. Registering an Uber editor panel at editor start up:

[InitializeOnLoad]
public class MyUberEditorPanel : IConsolePanelModule
{
    static MyUberEditorPanel()
    {
        // Register the module at editor [InitializeOnLoad]
        NjConsole.Modules.AddModule(new MyUberEditorPanel());
    }

    public bool PersistInEditMode => true; // Ensure module is persisted between play mode changes (depends on your  domain reload setting)

    public string Name => "UberPanel"; // Name to display on the side panel

    public float SideBarOrder => 15; // The order of the button to appear on the side panel

    public VisualElement CreateElement(ConsoleContext context)
    {
        // Create the VisualElement for the panel - this is for that specific ConsoleContext.
        // Remember you can have multiple editor console windows and at runtime too.
        // The context will be unique per window.
        return new MyUberEditorPanelElement();
    }
}

class MyUberEditorPanelElement : VisualElement
{
    public MyUberEditorPanelElement()
    {
        AddToClassList("panel"); // just adds a background
        Add(new Label("Hello from MyUberEditorPanelElement"));
    }
}

Lock editor console window to a single panel

Open several console windows, each locked to one panel — so your migrated editor tools keep a direct entry point of their own.

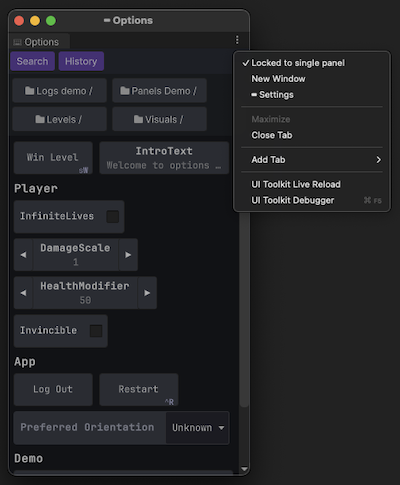

Screenshot of locking a panel to window

Using the previous UberPanel example, you can make a menu item to open your panel directly and lock it:

[MenuItem("Tools/Create Uber Panel")]
public static void CreateUberPanel()
{
    // Ensure the module exists.
    if (NjConsole.Modules.GetModule(typeof(MyUberEditorPanel)) == null)
    {
        NjConsole.Modules.AddModule(new MyUberEditorPanel());
    }

    // Open a new console editor window (use GetOrCreateWindow() to reuse an existing one instead).
    var window = NjConsoleEditorWindow.CreateWindow();

    // Set console panel to show MyUberEditorPanel
    window.Window.SetActivePanel<MyUberEditorPanel>();

    // lock to single panel (unlock it any time from the window context menu - top right triple dot)
    window.SetLockedToSinglePanel(true);
}
